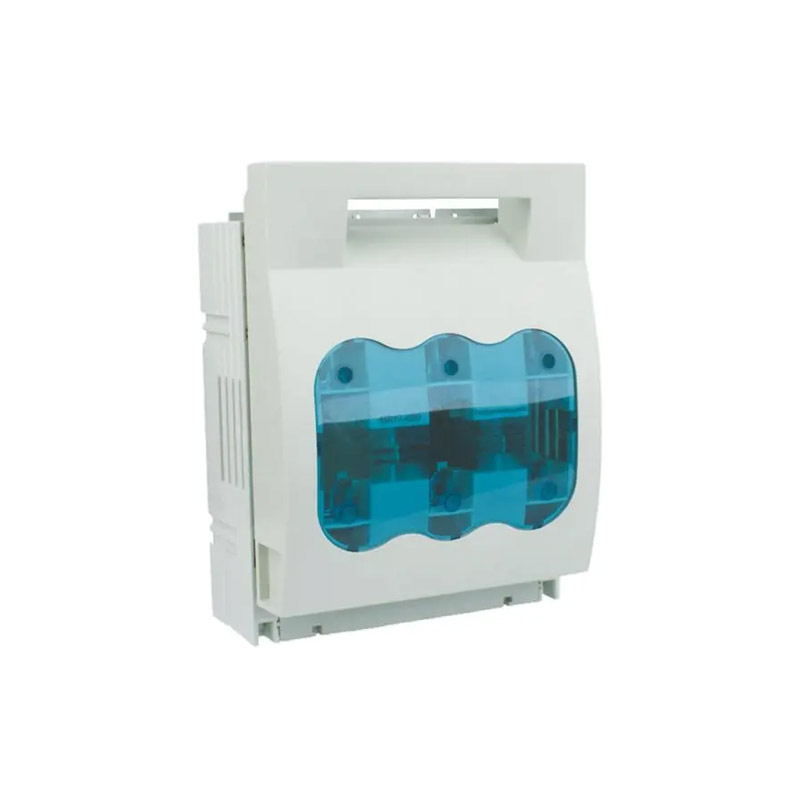

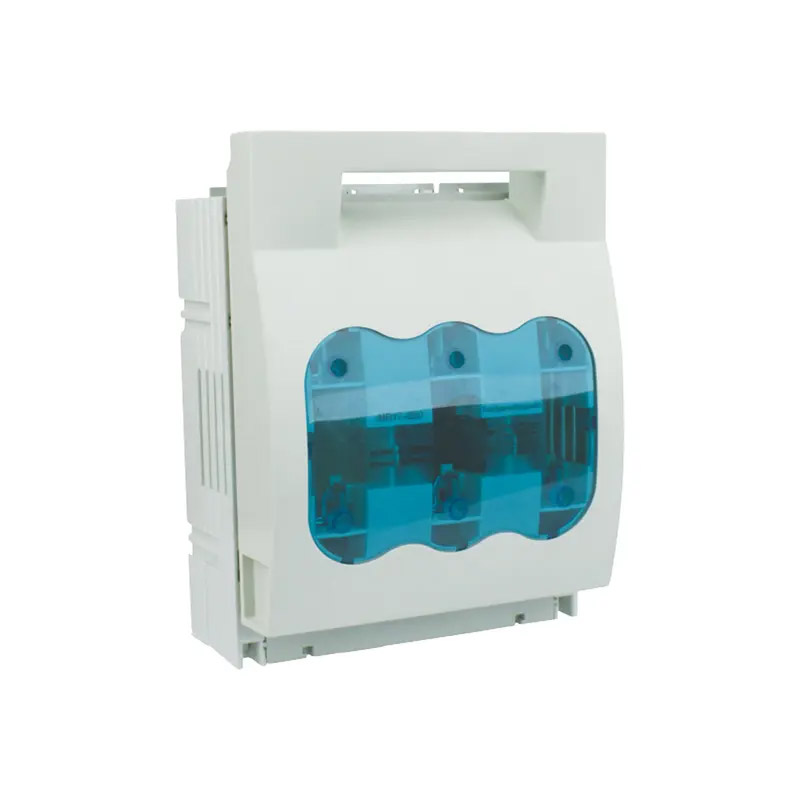

HR17 Fuse Switch-Disconnector
- Fuse Switch-Disconnector
- HR17
- 380V 660V
- 40~630A
HR17 series fuse-swith disconnector is a new product developed byourcompany.Rated insulation volta……
HR17 series fuse-swith disconnector is a new product developed byourcompany.Rated insulation voltage up to 800V,rated operational voltage up to 690V,ratedoperating current upto 630A,rated frequency 50Hz,in the distribution circuit andmotor circuit which has high short-circuit current asthe power switch,isolatingswitch,emergency switch as well as circuit protection,but normally itis not used tomakeand breaka single motordirectly
Standard:IEC/EN 60947-3.

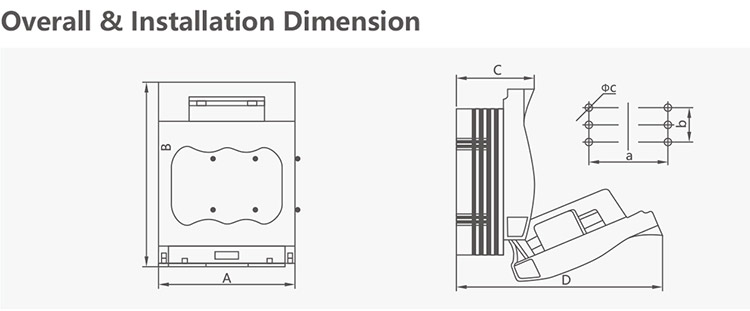

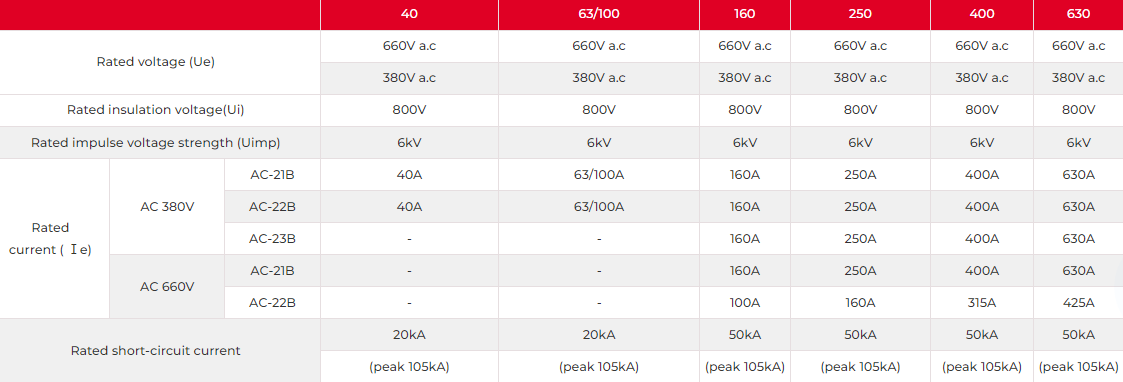

Product Details
| Model | Poles | Overall (mm) | Installation (mm) | |||||
| A | B | C | D | a | b | Φc | ||
| HR17-40 | 3P | 76 | 116 | 76 | 150 | 42 | / | Φ6 |
| HR17-63 | 3P | 105 | 116 | 76 | 150 | 62 | / | Φ6 |
| HR17-100 | 3P | 105 | 116 | 76 | 150 | 62 | 25 | Φ6 |
| HR17-160 | 3P | 106 | 200 | 83 | 205 | 66 | 25 | Φ7 |
| 4P | 138 | 200 | 83 | 205 | 100 | 25 | Φ7 | |
| HR17-250 | 3P | 185 | 247 | 110 | 295 | 114 | 50 | Φ11 |
| 4P | 242 | 247 | 110 | 295 | 172 | 50 | Φ11 | |
| HR17-400 | 3P | 210 | 290 | 125 | 340 | 130 | 50 | Φ11 |
| 4P | 276 | 290 | 125 | 340 | 195 | 50 | Φ11 | |
| HR17-630 | 3P | 256 | 300 | 145 | 360 | 162 | 50 | Φ11 |
| 4P | 340 | 300 | 145 | 360 | 243 | 50 | Φ11 | |
| Conventional heating current Ith | Matching fuse size | Fuse rated current(A) |
| 40A | Rt14 | 2, 4, 6, 8, 10, 12, 16, 20, 25, 32, 40 |
| 63A/100A | RT14 | 10, 12, 16, 20, 25, 32, 40, 50, 63 |
| 160A | NT100 | 10, 16, 25, 32, 40, 50, 63, 80, 100, 125, 160 |
| 250A | NT1 | 80, 100, 125, 160, 200, 225, 250 |
| 400A | NT2 | 125, 160, 200, 225, 250, 300, 315, 355, 400 |
| 630A | NT3 | 315, 355, 400, 425, 500, 630 |
